iRay DW20

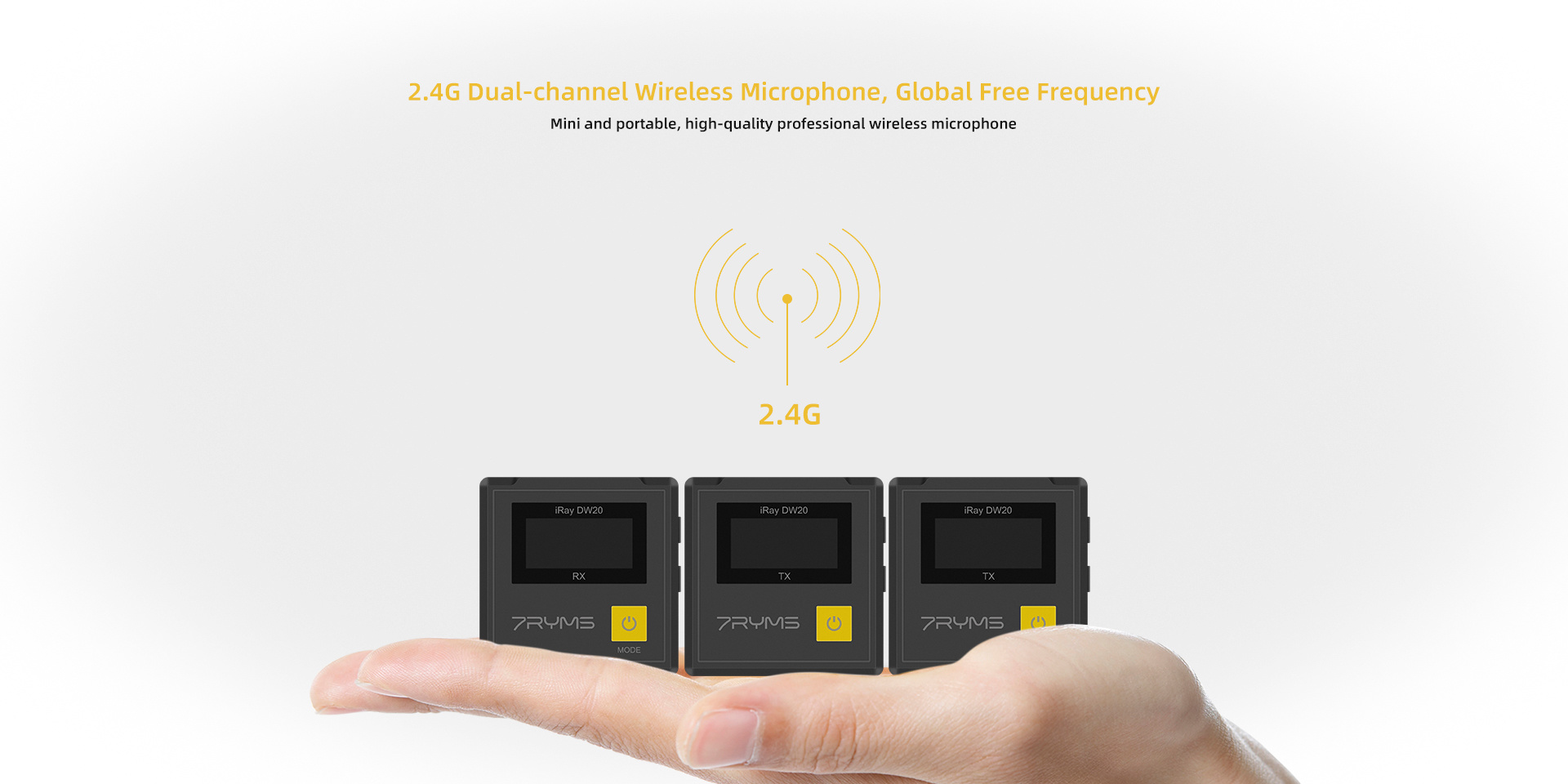

2.4G Dual-channel Wireless Microphone
- Features
- Specification
- Compatibility
- Video
-
-
Transmitter(TX)
Wireless Band
2400 ~ 2483.5MHz
Transmitting Power
+10dBm
Receiving Sensitivity
-86dBm
SNR
>70dB
Antenna
PCB Antenna
Polar Pattern
Omnidirectional
Frequency Response
80Hz ~ 20kHz
Sound Delay
<20ms

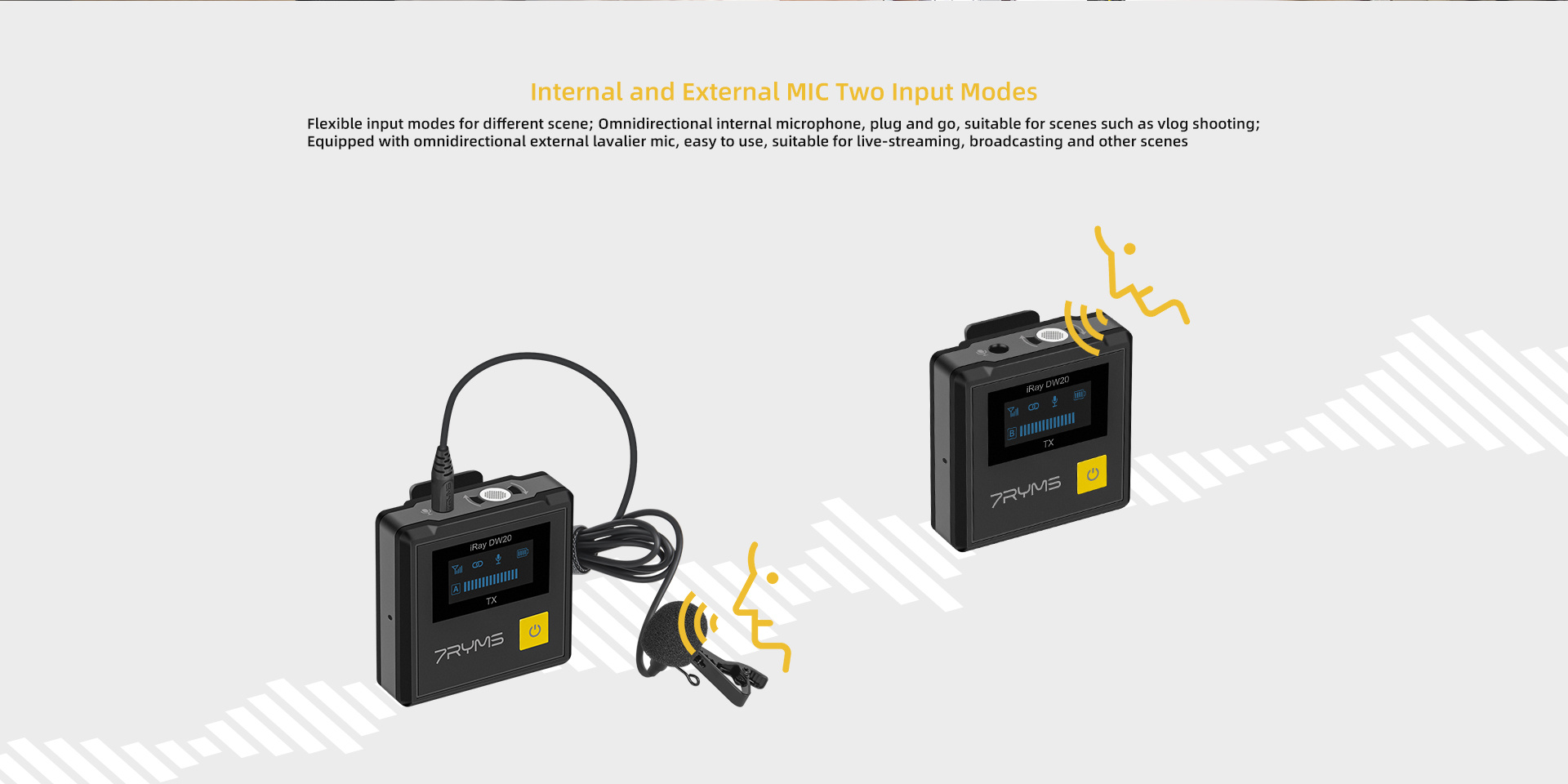

External Mic Input Interface
3.5mm TRS
Battery
Lithium polymer 330mAh 3.7V
Battery Life
6 Hours
Net Weight
28g
Dimension
45 x 45 x 22mm
Operating Temperature
0℃ ~ 50℃
Storage Temperature
-20℃ ~ +60℃
Receiver(RX)
Wireless Band
2400 ~ 2483.5MHz
Transmitting Power
+10dBm
Receiving Sensitivity
-86dBm
SNR
>70dB
Antenna
PCB Antenna

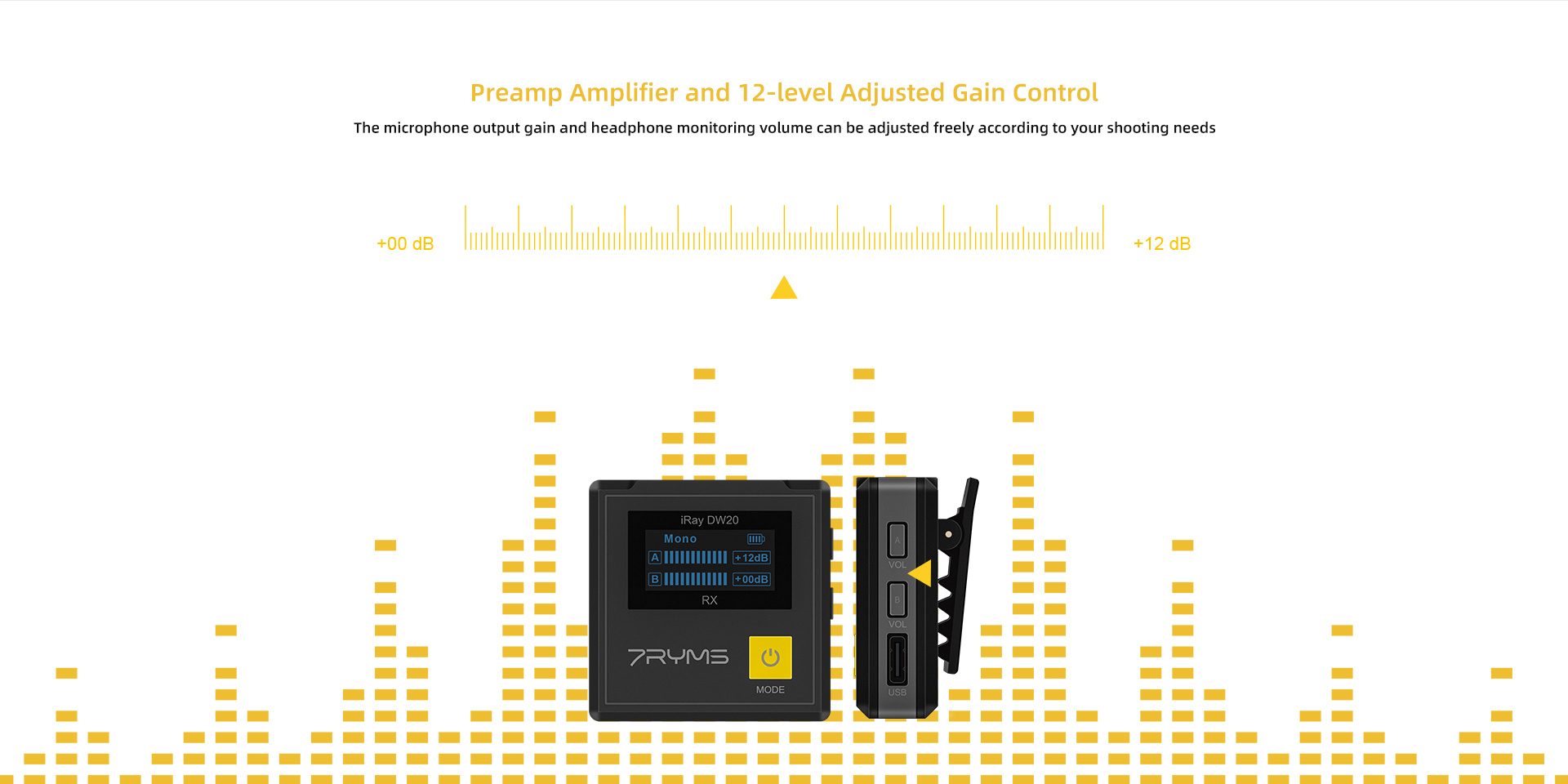

Audio Output Amplitude
+0dB ~ +12dB
Sound Delay
<20ms
Audio Output Interface
3.5mm TRS&USB-C

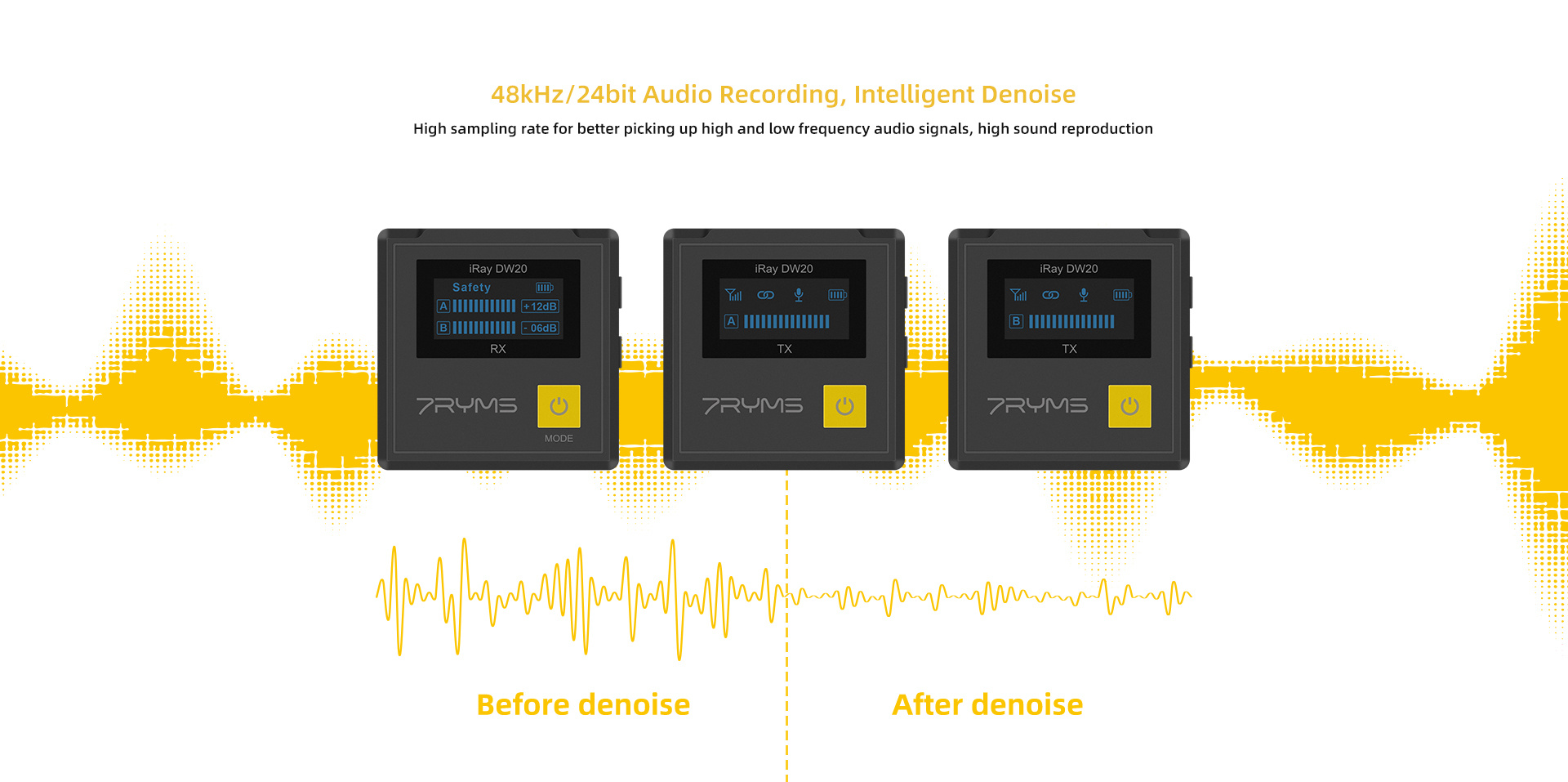

Digital Output
48kHz 24bits
Monitor Interface
3.5mm TRS/TRRS
Battery
Lithium polymer 330mAh 3.7V
Battery Life
6 Hours
Net Weight
28g
Dimension
45 x 45 x 22mm
Operating Temperature
0℃ ~ 50℃
Storage Temperature
-20℃ ~ +60℃
-

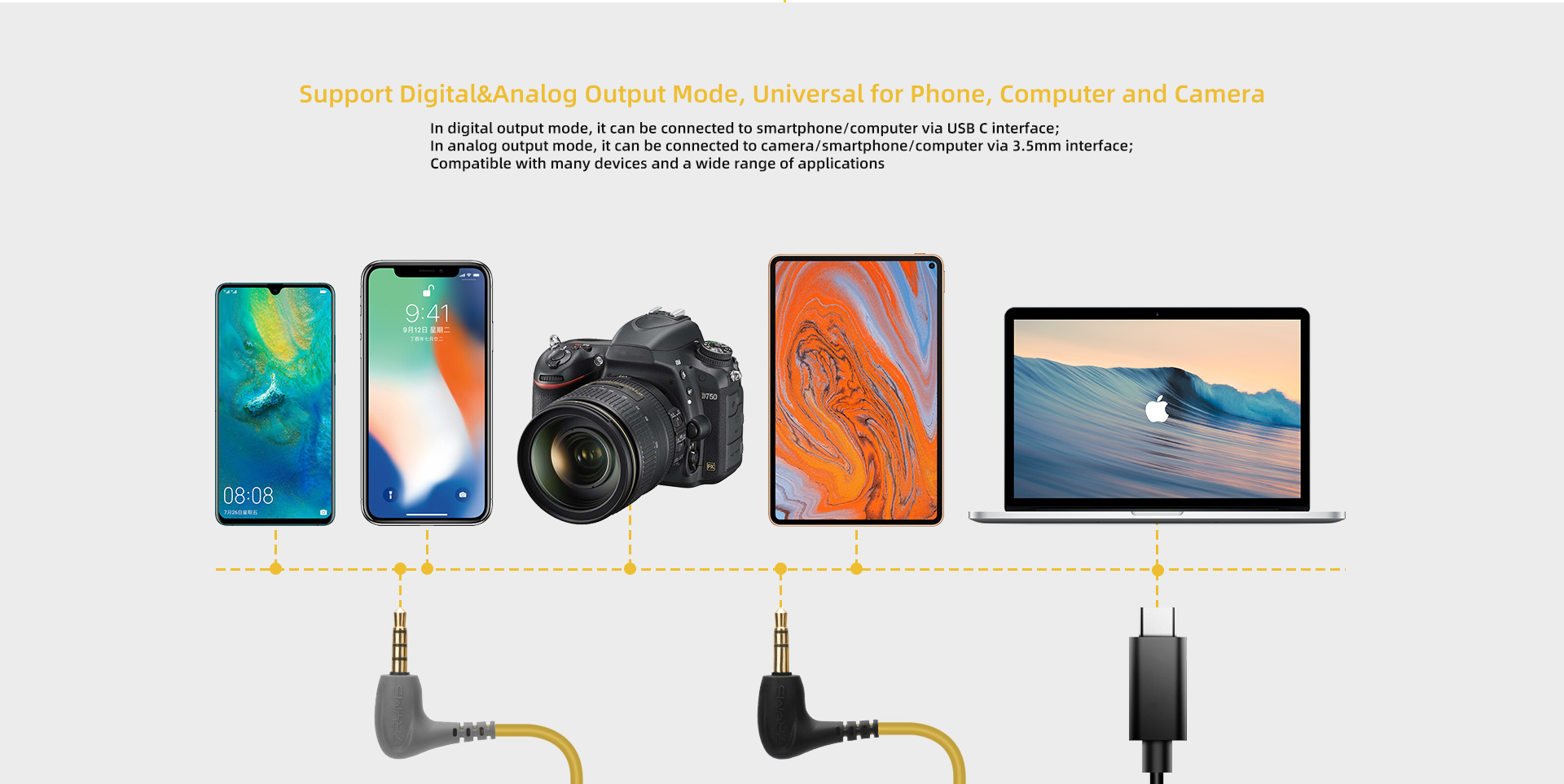

Compatible with smartphone, computer, camera and other equipment
