iRay DW20 PRO

24G Dual-channel Wireless Microphone

Features

Specification

Compatibility

Video

扫二维码用手机看

Transmitter(TX)

Wireless Frequency	2400 ~ 2483.5MHz
Transmitting Power	+10dBm
Sensitivity	-86dBm
S/N	>70dB
Antenna	PCB Antenna
Polar Pattern	Omnidirectional
Frequency Response	80Hz ~ 20kHz
Latency	<20ms
Input Port	3.5mm TRS
Battery	Built-in Li-ion Battery 330mAh 3.7V
Battery Life	6 Hours
Net Weight	28g
Dimension	45 x 45 x 22mm
Working Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ +60℃

Receiver(RX)

Wireless Frequency	2400 ~ 2483.5MHz
Transmitting Power	+10dBm
Sensitivity	-86dBm
S/N	＞70dB
Antenna	PCB Antenna
Audio Output	+0dB ~ +12dB
Latency	<20ms
Analog Output	3.5mm TRS
Digital Output	USB-C/48kHz 24bits
Monitoring Port	3.5mm TRS/TRRS
Battery	Built-in Li-ion Battery 330mAh 3.7V
Battery Life	6 Hours
Net Weight	28g
Dimension	45 x 45 x 22mm
Working Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ +60℃

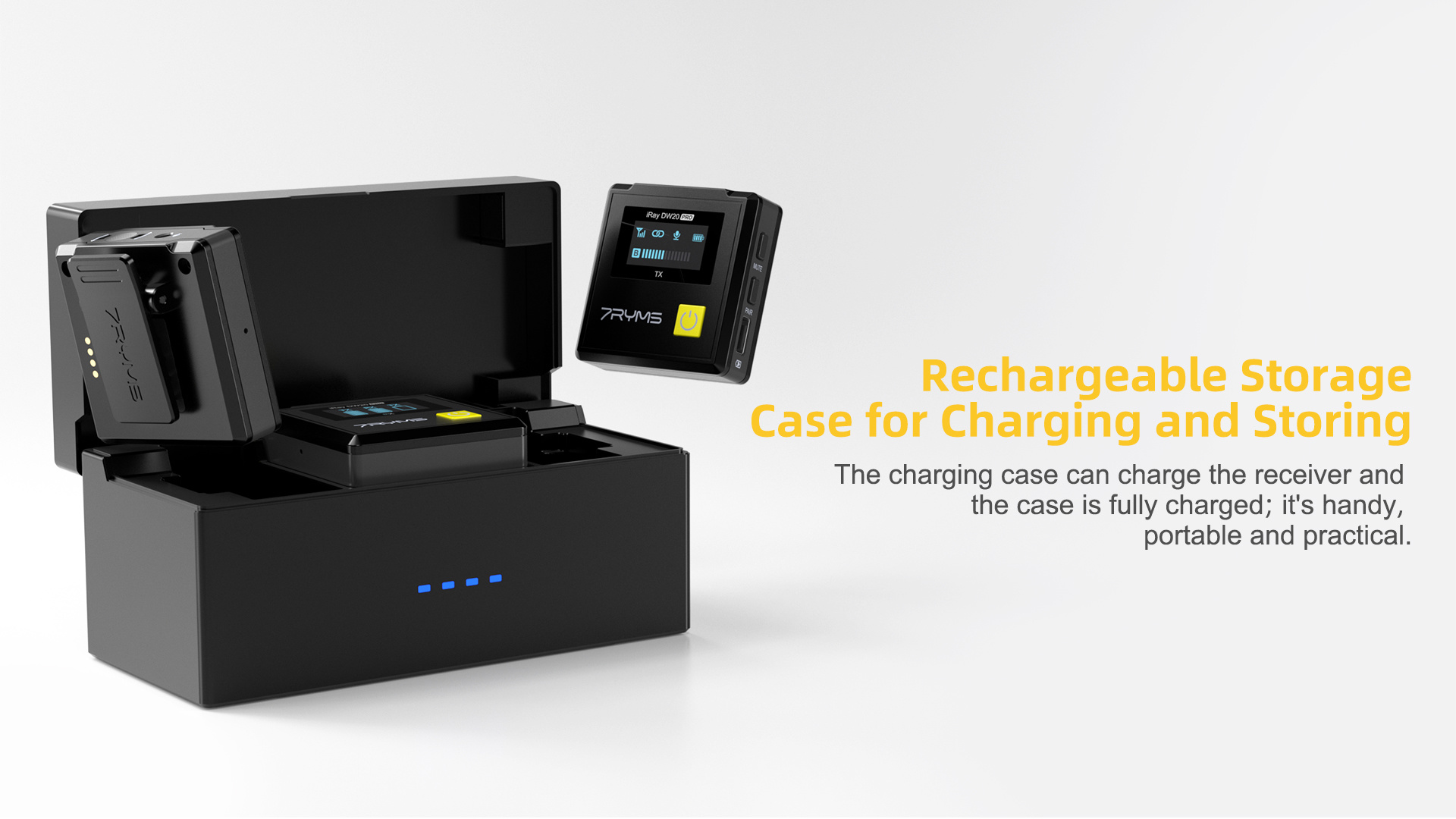

Charging Case

Operating Time	Twice for two transmitters and one receiver charged simultaneously
Charging Port	USB-C
Battery	Built-in Li-ion Battery 3000mAh 3.7V
Net Weight	230g
Dimension	124 x 60 x 60mm
Working Temperature	0℃~50℃
Storage Temperature	-20℃~+60℃
