iRay DW30
2.4G Dual-channel On-board Recording Wireless Microphone

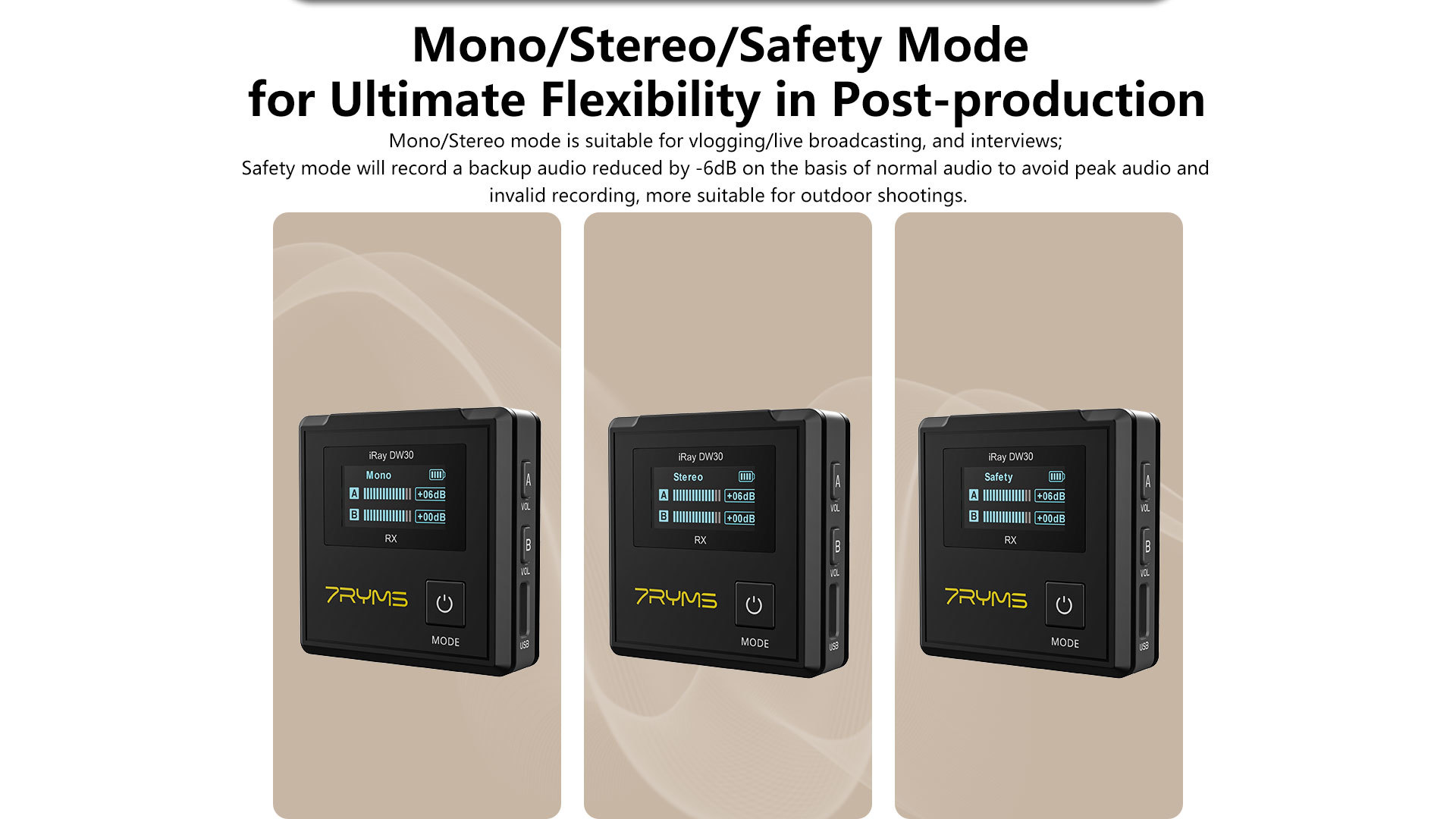

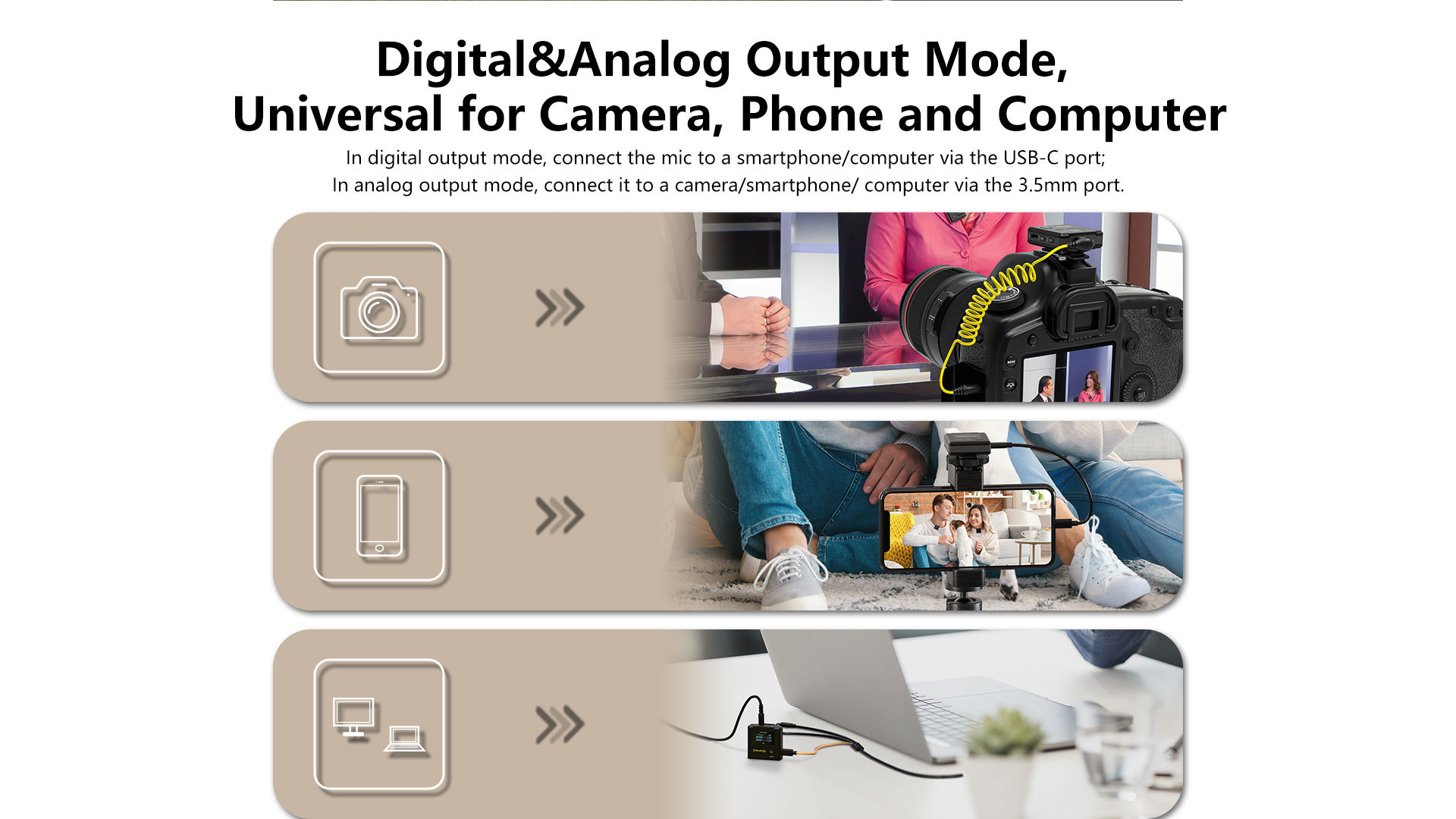

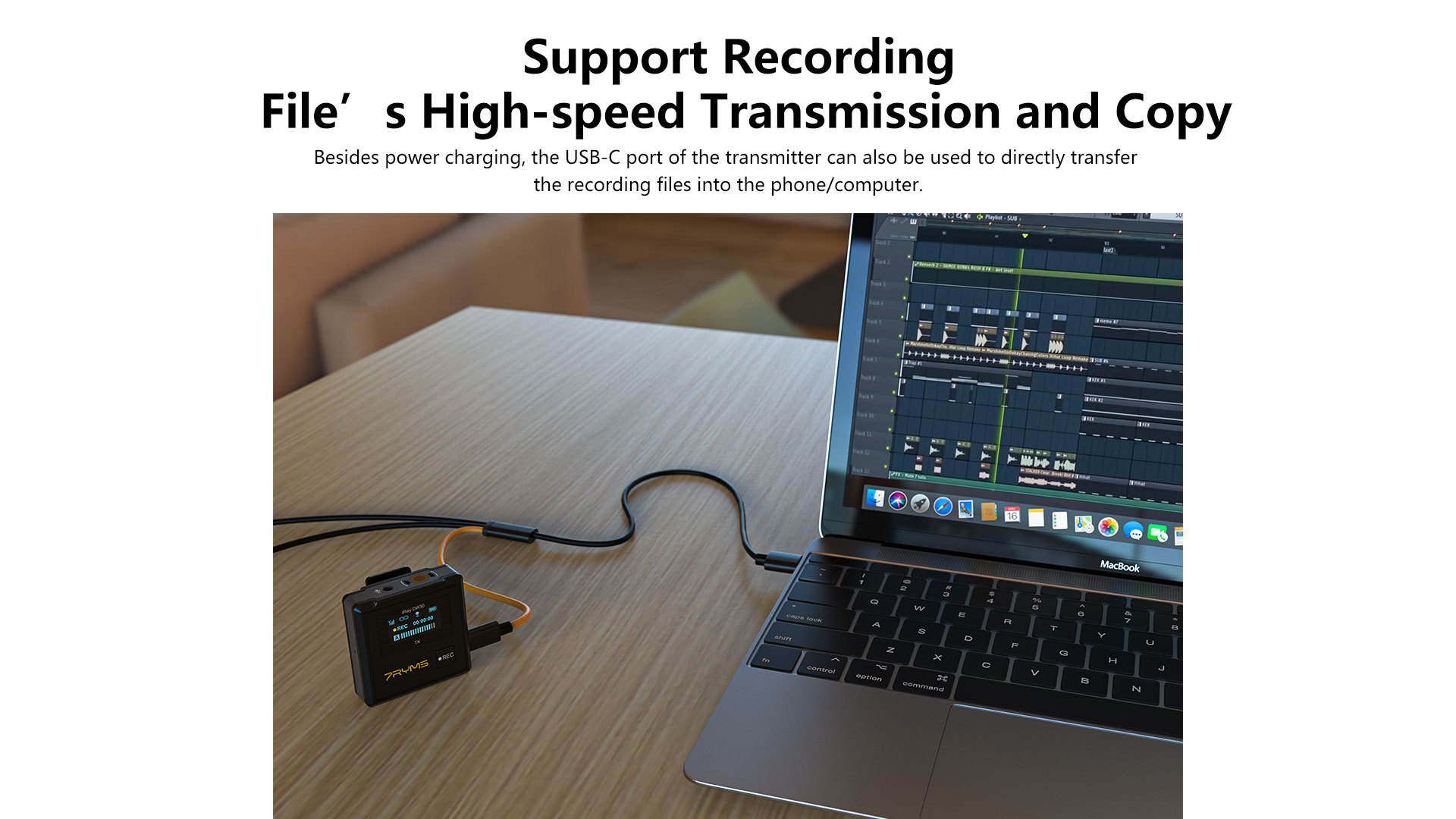

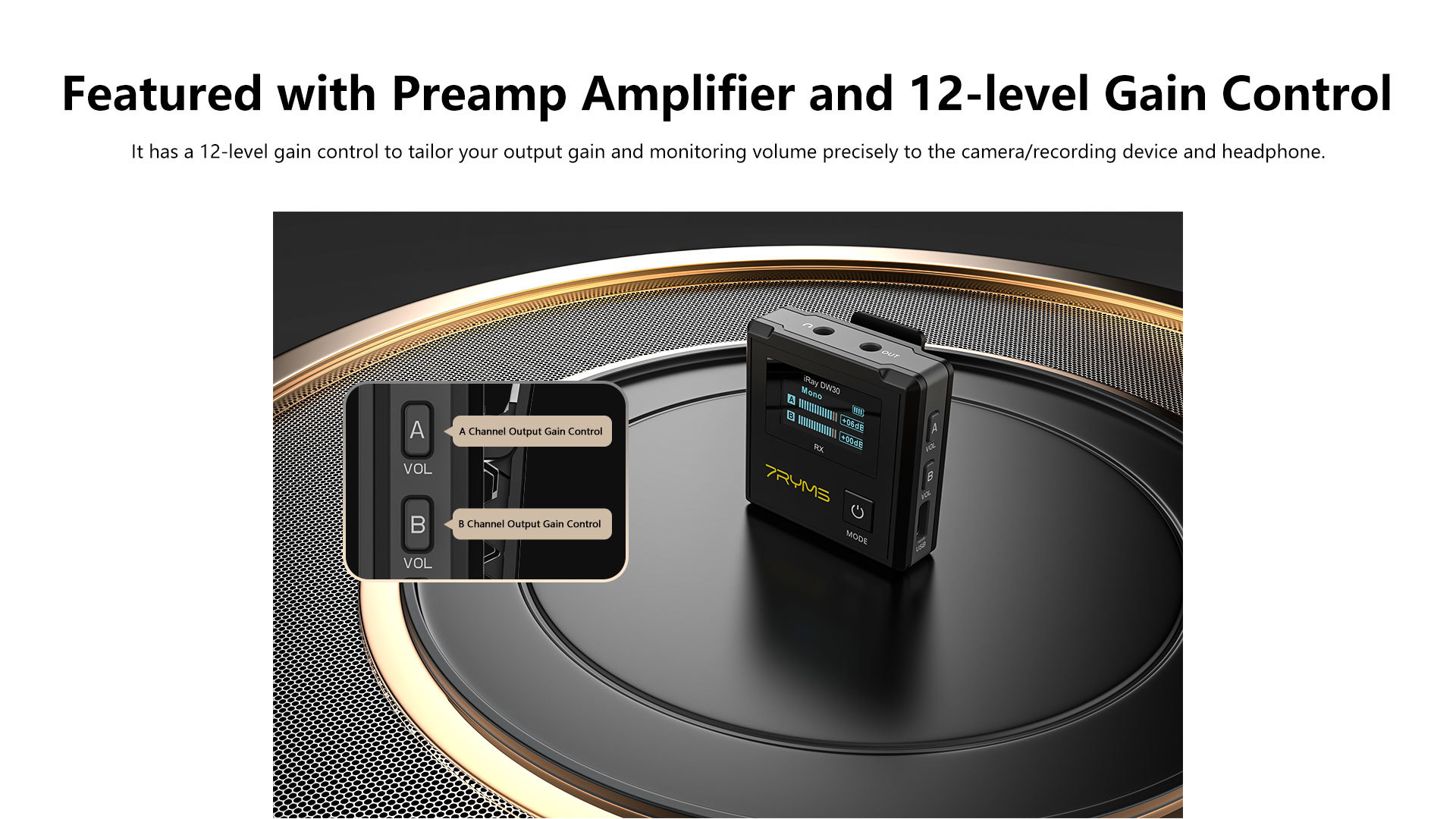

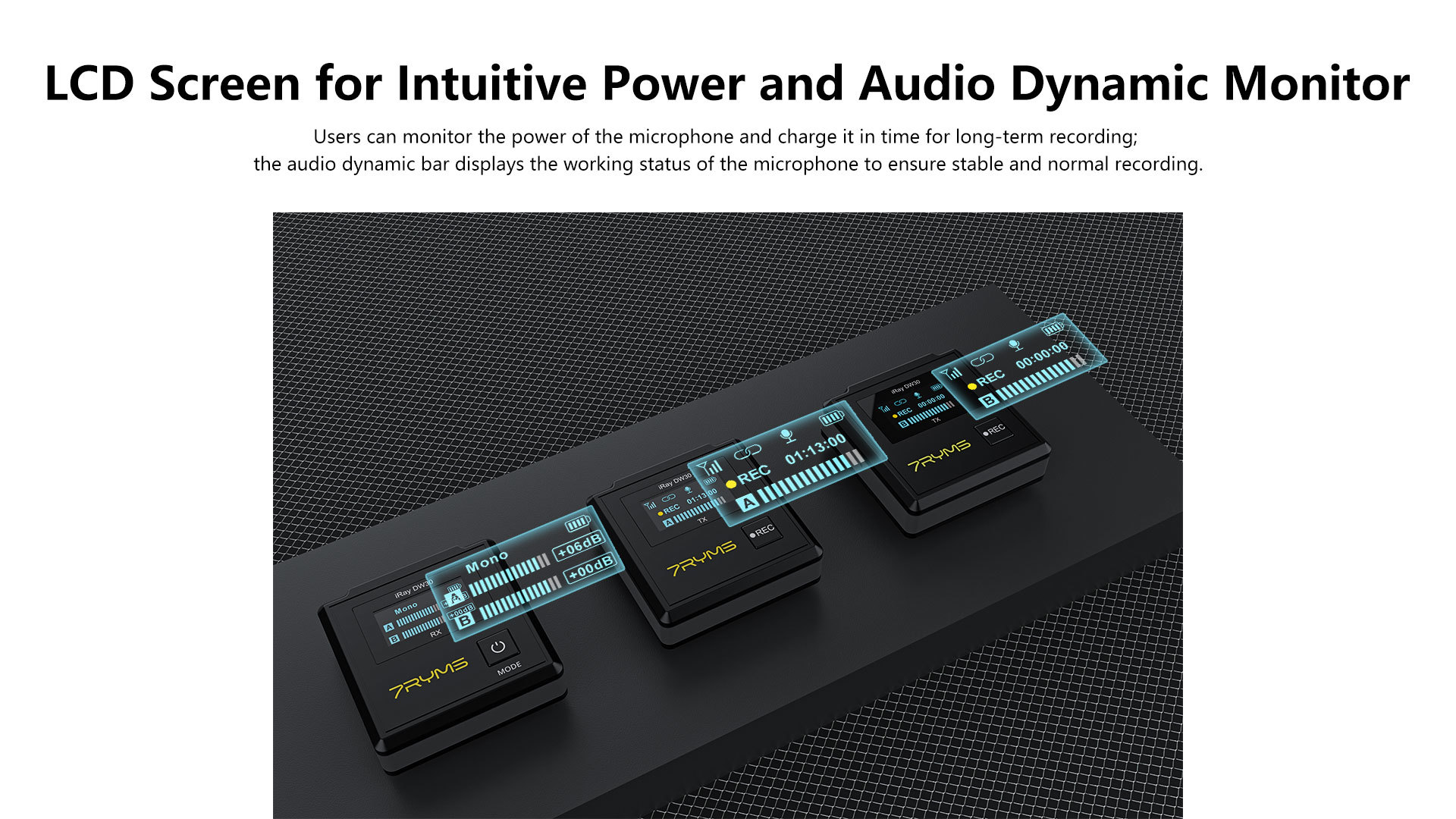

● 48kHz/24bit Audio Recording, Intelligent Denoise ● Support On-board Recording with 8G Internal Memory(About 24 Hours) ● Support Recording File's High-speed Transmission and Copy ● Digital&Analog Output Mode, Universal for Camera, Phone and Computer ● Mono/Stereo/Safety Mode for Ultimate Flexibility in Post-production ● Rechargeable Storage Case for Charging and Storing ● LCD Screen for Intuitive Power and Audio Dynamic Monitor ● Featured with Preamp Amplifier and 12-level Gain Control ● Real-time Audio Monitor and One-touch Mute Function ● Internal and External MIC Two Input Modes ● Low Latency < 20ms, Working Range Up to 100m(Open Area) ● Designed with Magnetic Belt Clip, Wearable and Portable
- Features
- Specification
- Compatibility
- Video
-
-
Transmitter(TX)
Wireless Frequency
2400 ~ 2483.5MHz
Transmitting Power
+10dBm
Sensitivity
-86dBm
S/N
>70dB
Antenna
PCB Antenna
Polar Pattern
Omnidirectional
Frequency Response
80Hz ~ 20kHz
Latency
<20ms
Input Port
3.5mm TRS
Battery
Built-in Li-ion Battery 330mAh 3.7V
Battery Life
4.5 Hours
Net Weight
28g
Dimension
45 x 45 x 22mm
Working Temperature
0℃ ~ 50℃
Storage Temperature
-20℃ ~ +60℃
Receiver(RX)
Wireless Frequency
2400 ~ 2483.5MHz
Transmitting Power
+10dBm
Sensitivity
-86dBm
S/N
＞70dB
Antenna
PCB Antenna
Audio Output
-12dB ~ +12dB
Latency
<20ms
Analog Output
3.5mm TRS
Digital Output
USB-C/48kHz 24bits
Monitoring Port
3.5mm TRS/TRRS
Battery
Built-in Li-ion Battery 330mAh 3.7V
Battery Life
6 Hours
Net Weight
28g
Dimension
45 x 45 x 22mm
Working Temperature
0℃ ~ 50℃
Storage Temperature
-20℃ ~ +60℃

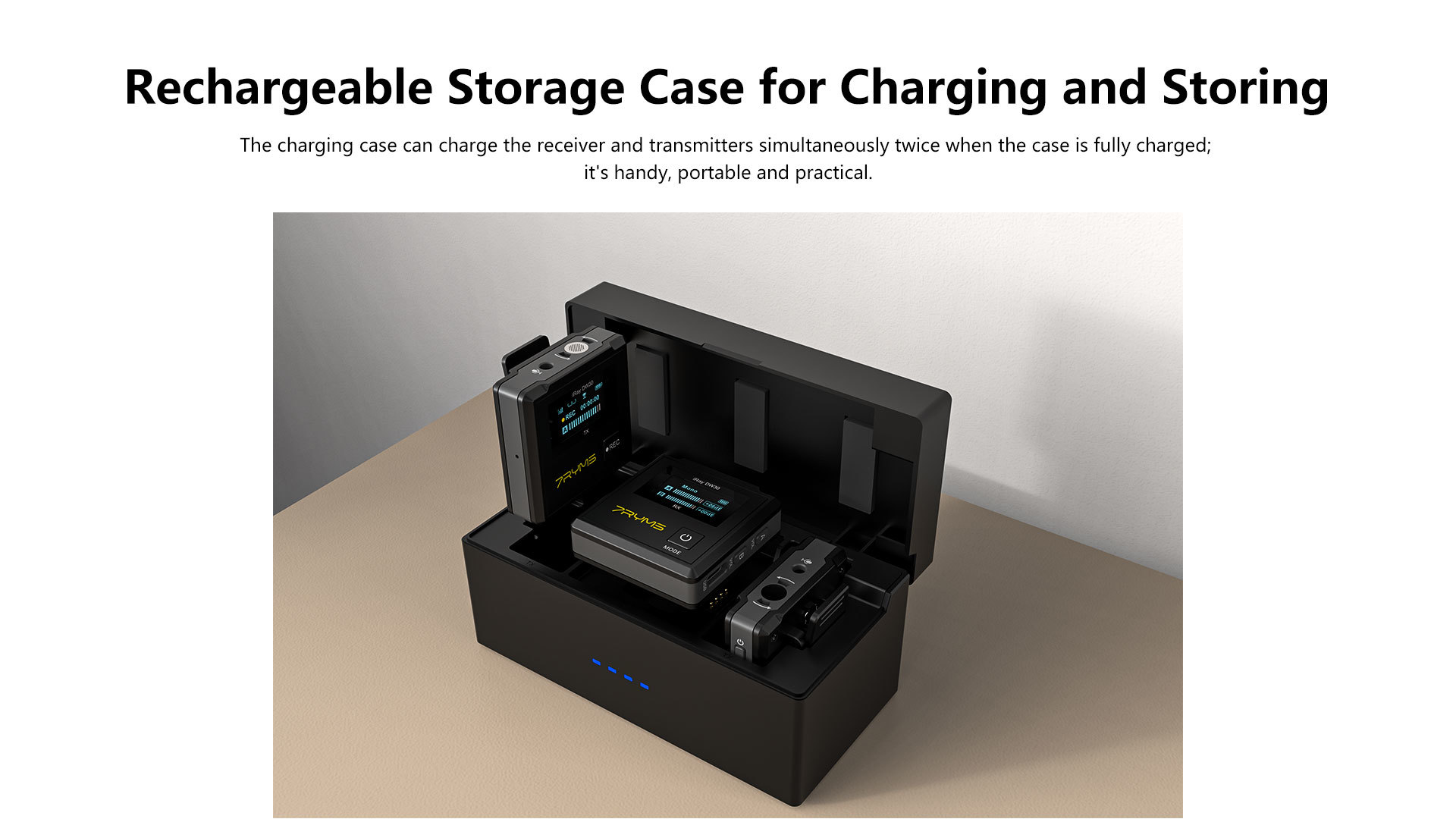

Charging Case
Operating Time
Twice for two transmitters and one receiver charged simultaneously
Charging Port
USB-C
Battery
Built-in Li-ion Battery 3000mAh 3.7V
Net Weight
230g
Dimension
124 x 60 x 60mm
Working Temperature
0℃~50℃
Storage Temperature
-20℃~+60℃
-
Compatible with smartphone, computer, camera and other equipment
