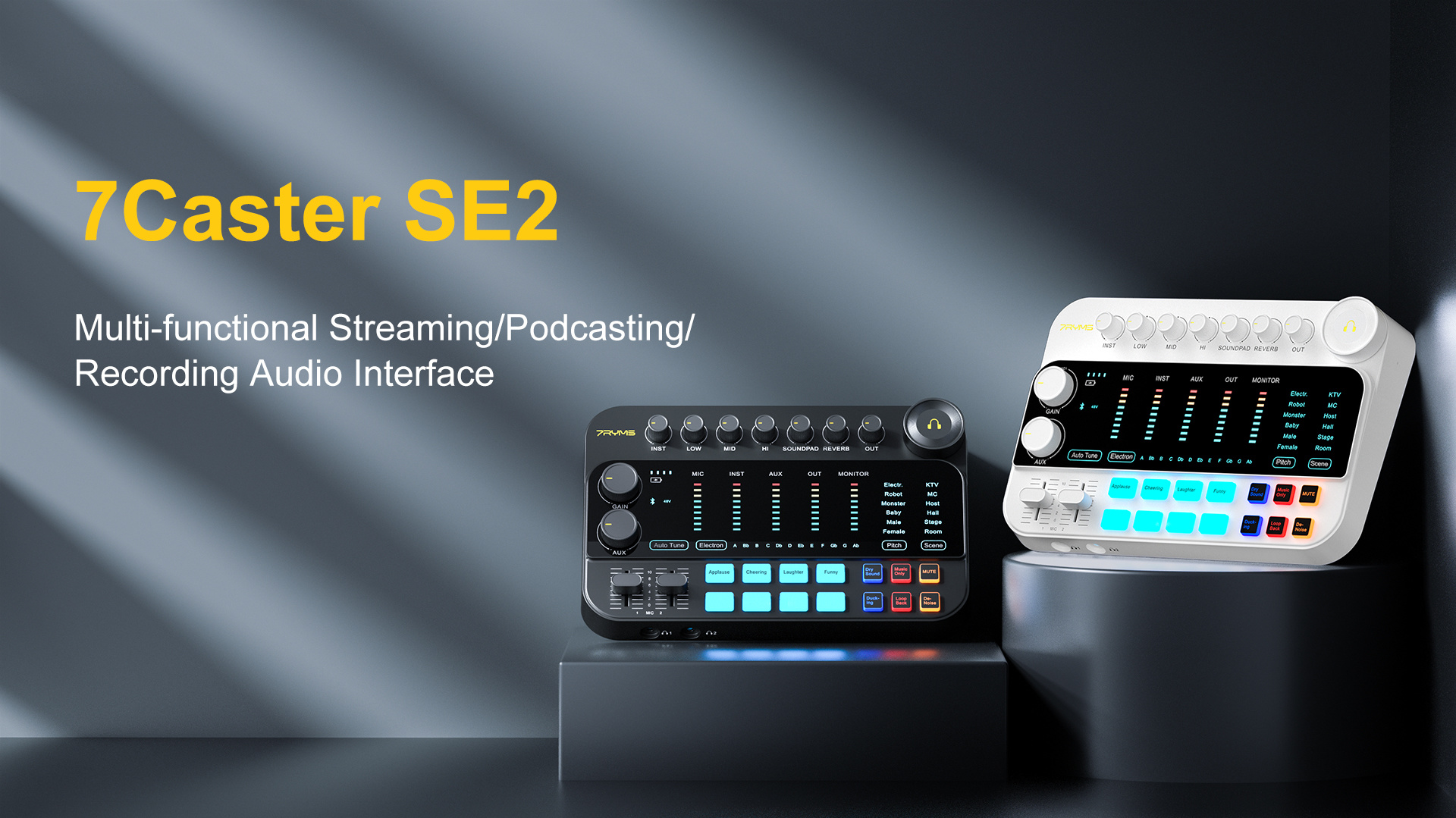

7Caster SE2
Multi-functional Streaming/Podcasting/Recording Audio Interface

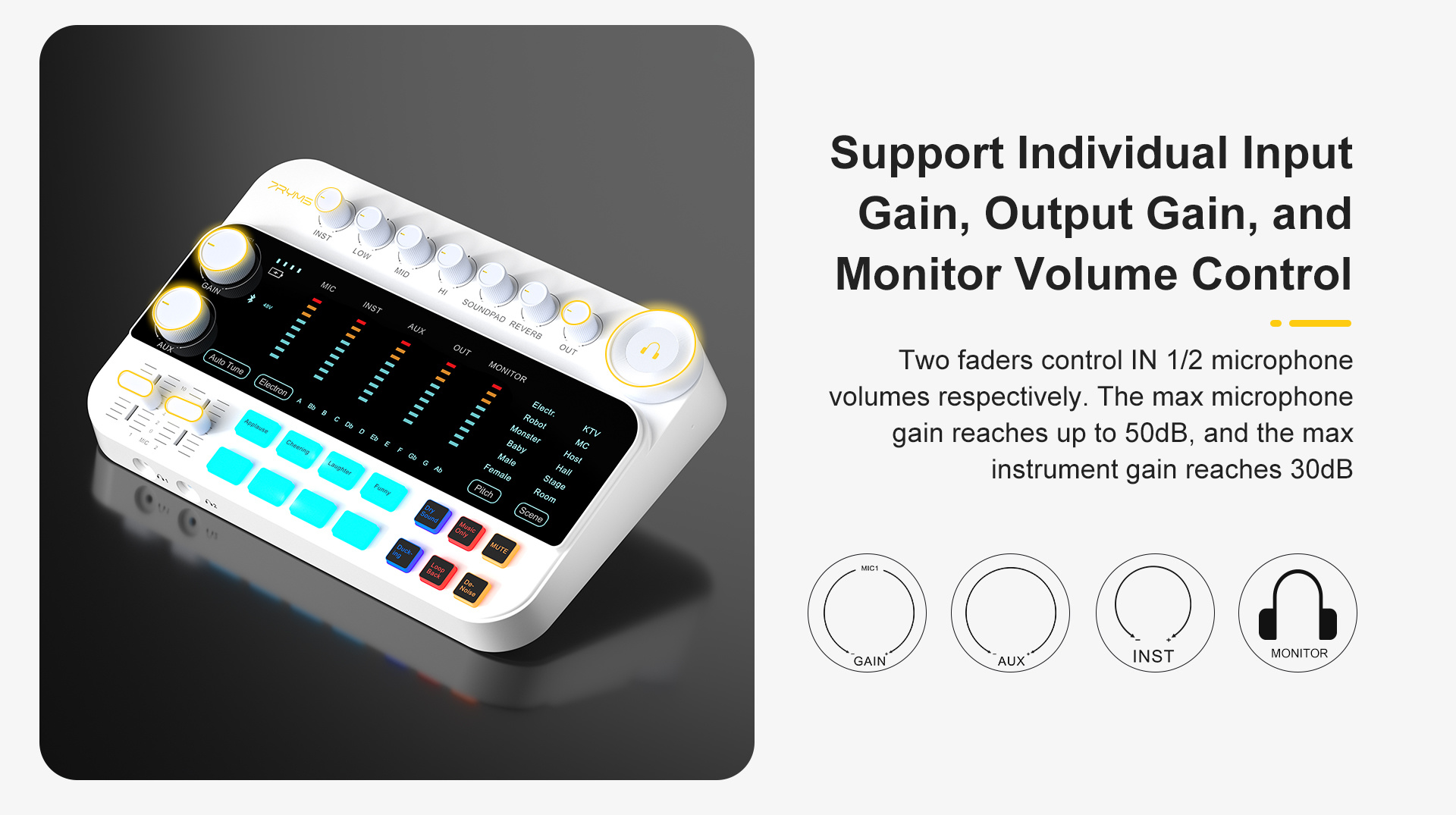

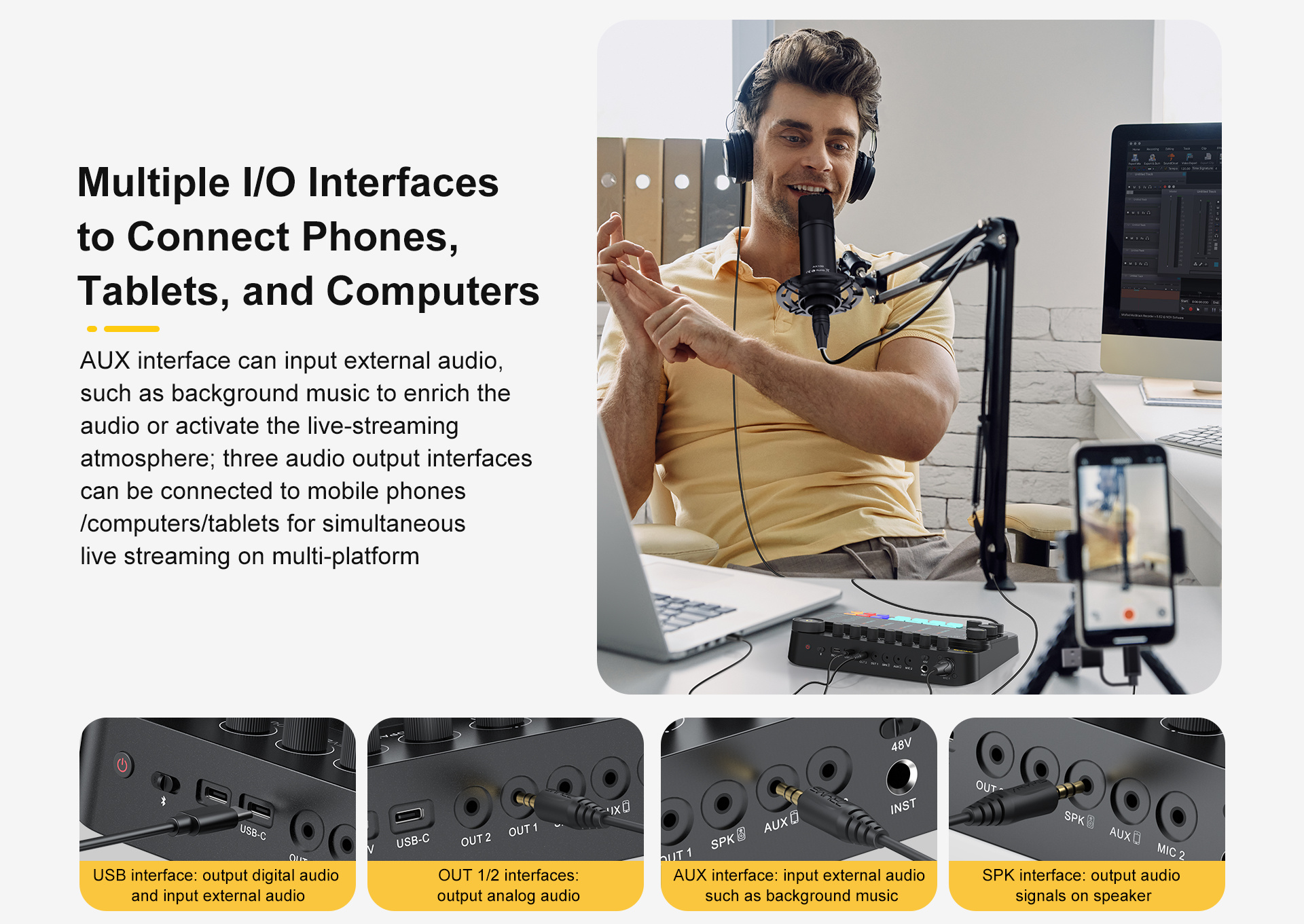

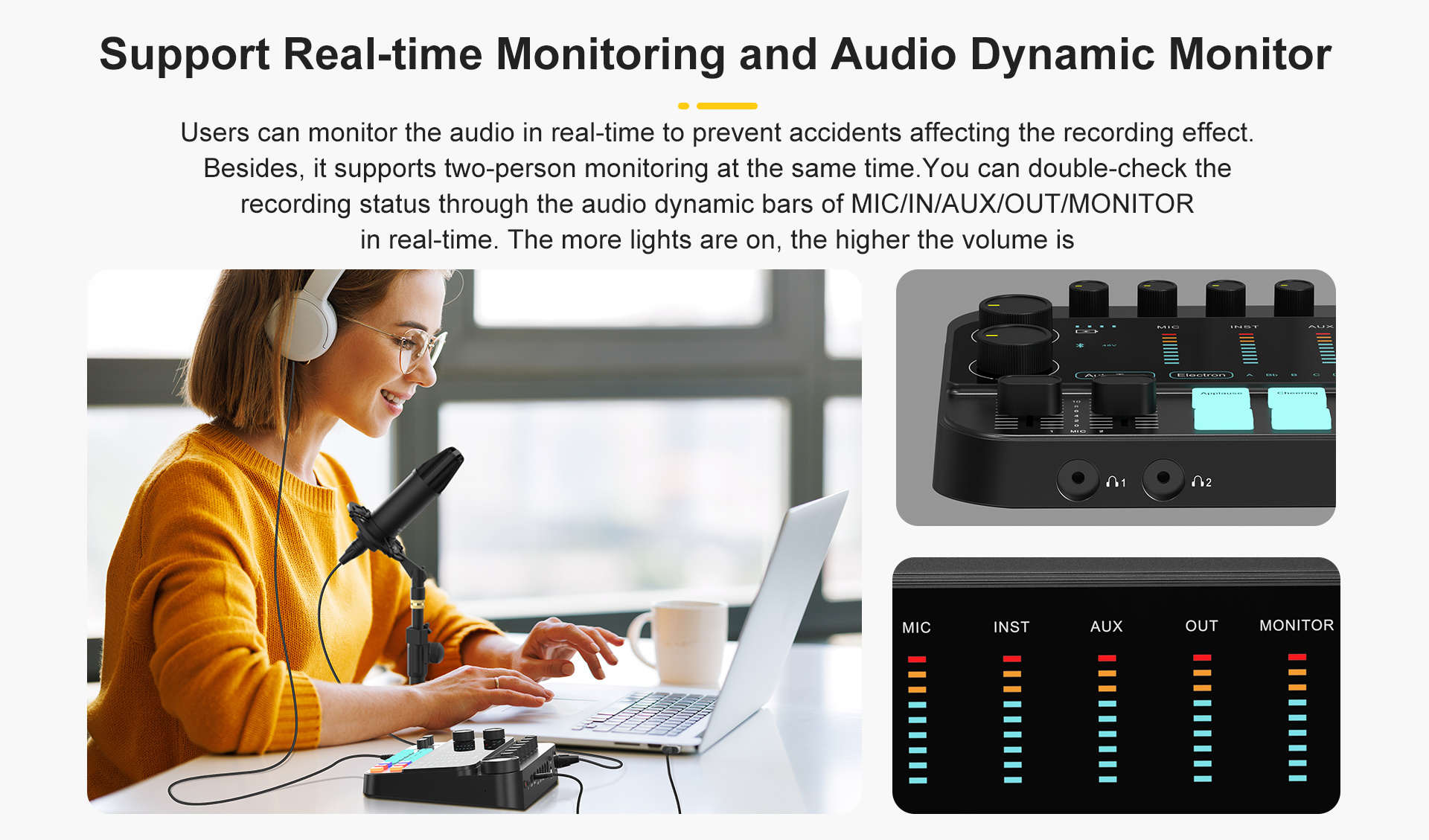

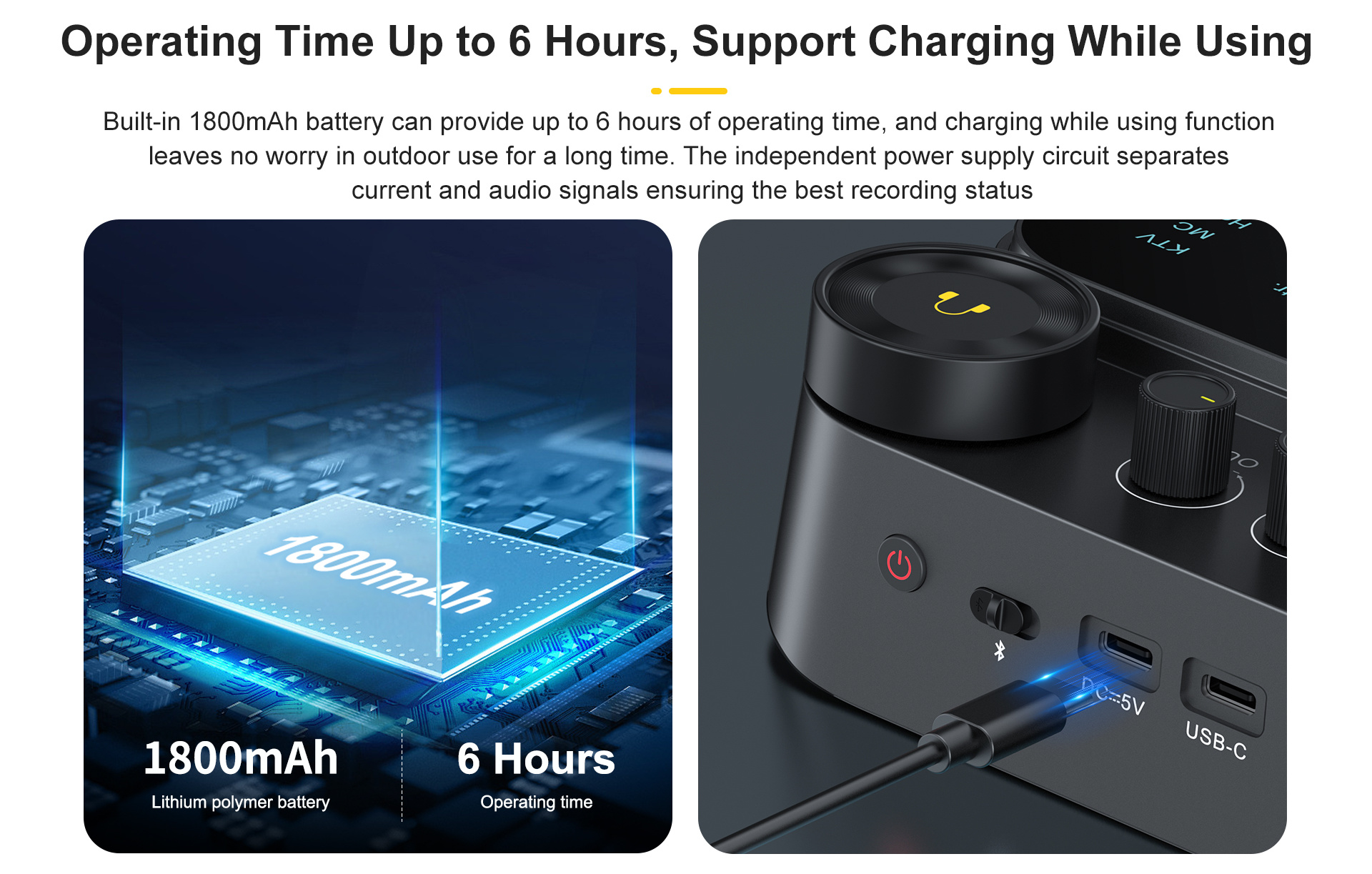

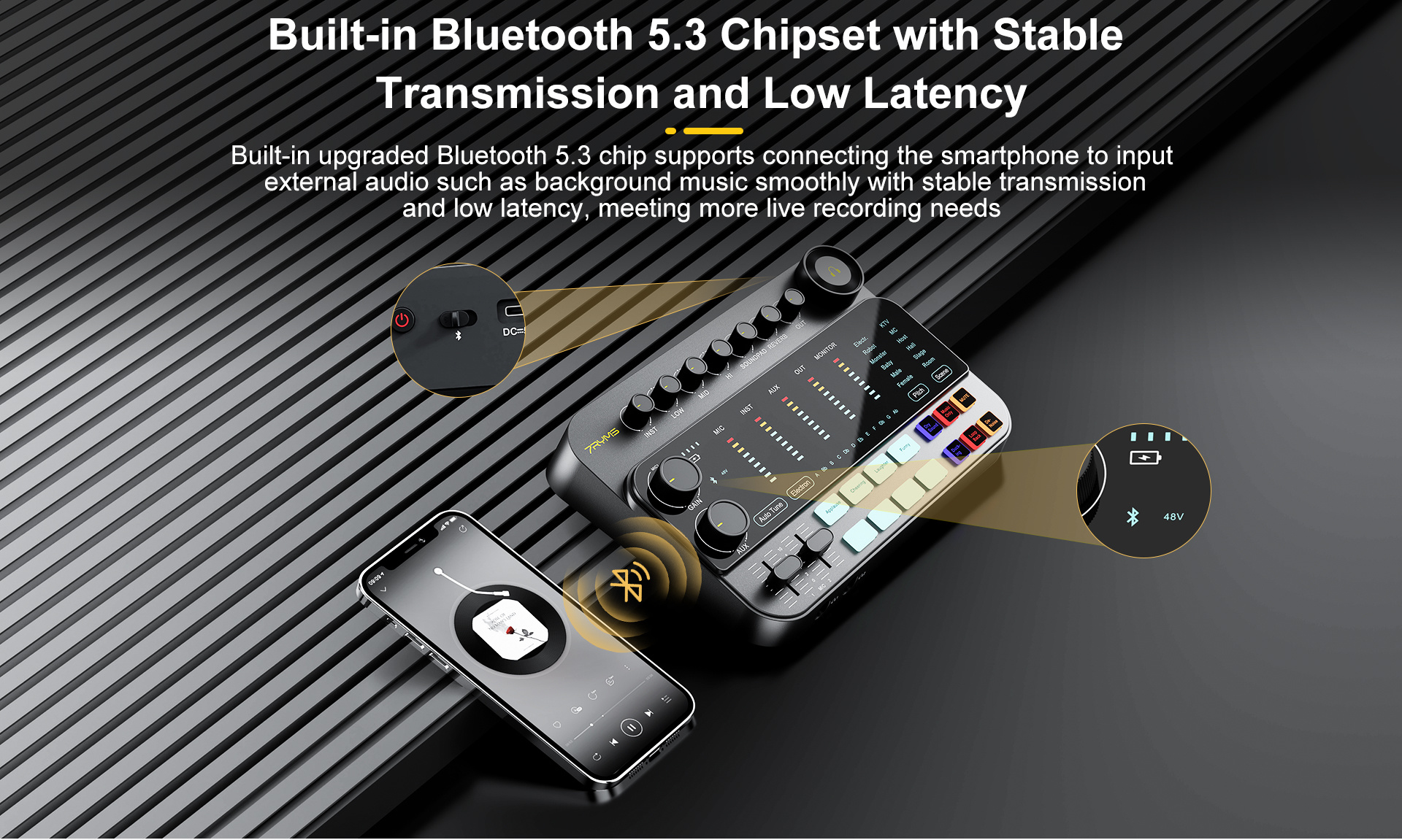

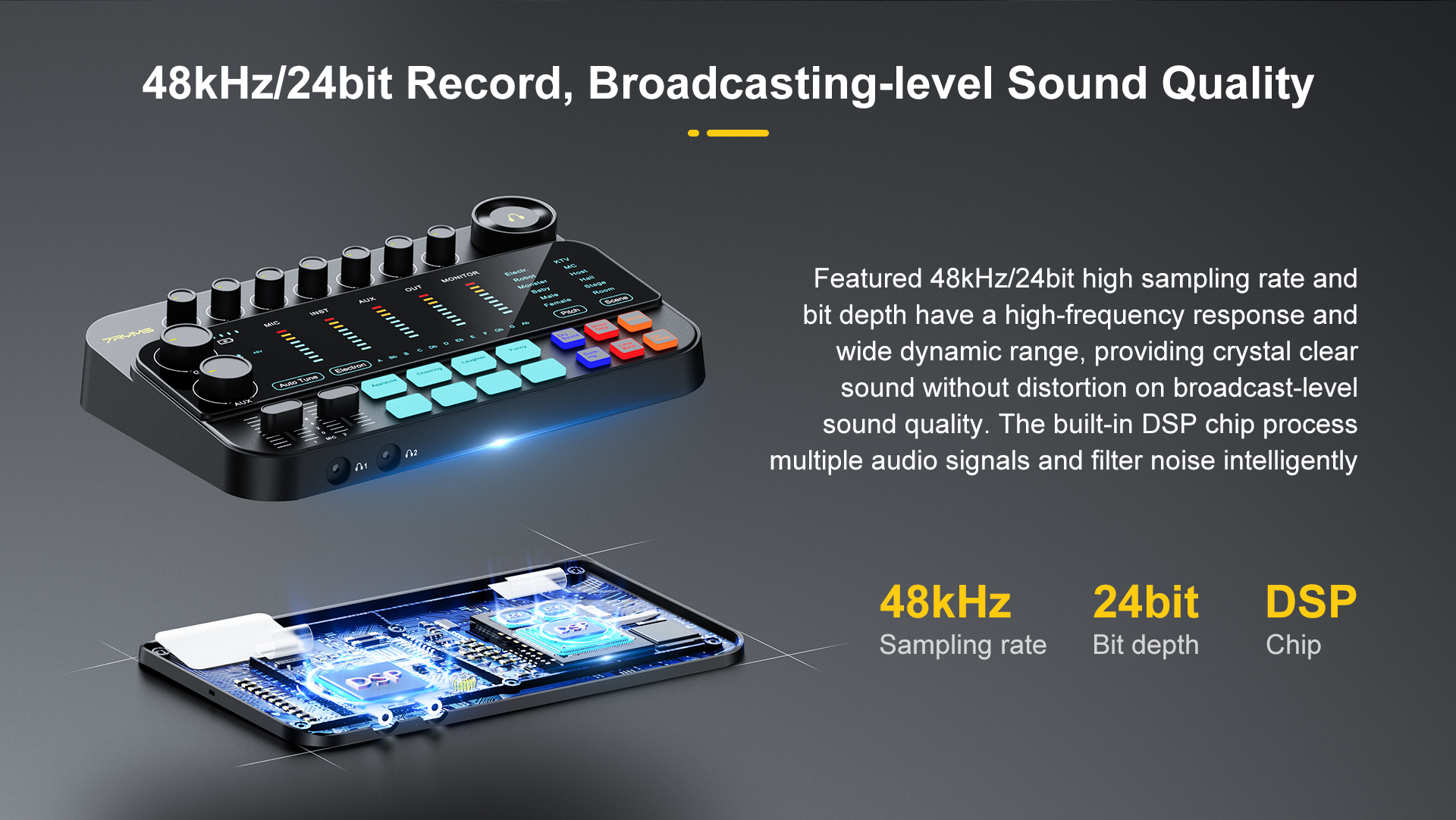

. 48kHz/24bit Record, Broadcasting-level Sound Quality . Integrated XLR/6.35mm Interface, Support 48V Mics and Instruments Input . Multiple I/O Interfaces to Connect Phones, Tablets, and Computers . Built-in Bluetooth 5.3 Chipset with Stable Transmission and Low Latency . Support Individual Input Gain, Output Gain, and Monitor Volume Control . Adjustable Low/Mid/High Tone, Sound Pad Volume, and Reverb Depth . Support Auto-tune, 12-step Electronic Sounds, 6 Pitch Changers, and 6 Scene Reverbs . 8 Sound Pads to Create Live Streaming and Podcasting Atmosphere . Support Dry Sound/Music Only/Mute/Ducking/Loopback/Denoise Functions . Support Real-time Monitoring and Audio Dynamic Monitor . Operating Time Up to 6 Hours, Support Charging While Using
- Features
- Specification
- Compatibility
- Video
-
-
Interfaces
Input Port

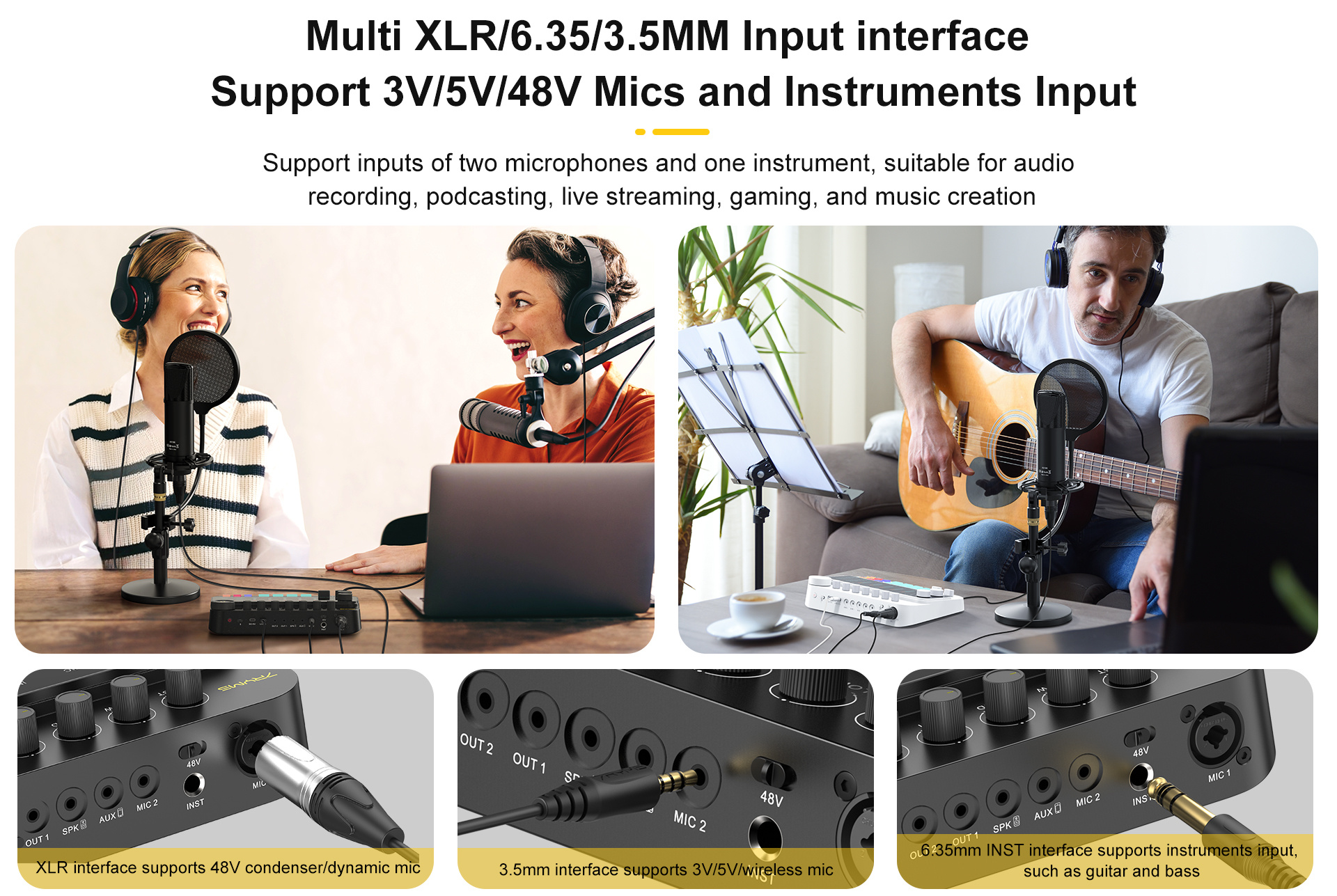

1 x XLR/6.35mm, 1 x 3.5mm
INST Port
1 x 6.35mm
AUX Port
1 x 3.5mm
Digital Port
1 x USB OTG
OUT Port
2 x 3.5mm
Speaker Output
1 x 3.5mm
Monitor Output
2 x 3.5mm
Audio Resolution
Sampling Rate
48kHz
Bit Depth
24bit
Microphone Input
Dynamic Range
100dB(A-weighted,as per IEC651)
Frequency Response
20Hz ~ 20kHz, ±0.1dB
THD+N
0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF
Equivalent Noise
-128dBu(A-weighted,as per IEC651)
Input Impedance
5kΩ
Maximum Input Level
-8dBu
Gain Range
10dB ~ 50dB
INST Input
Dynamic Range
100dB(A-weighted,as per IEC651)
Frequency Response
20Hz ~ 20kHz, ±0.1dB
THD+N
0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF
Equivalent Noise
-128dBu(A-weighted,as per IEC651)
Input Impedance
50kΩ
Maximum Input Level
4dBu
Gain Range
0 ~ 30dB
Speaker Output
Dynamic Range
100dB(A-weighted,as per IEC651)
Frequency Response
20Hz ~ 20kHz, ±1dB
Input Impedance
470Ω
Maximum Input Level
4dBu
Monitor Output
Dynamic Range
100dB(A-weighted,as per IEC651)
Frequency Response
20Hz ~ 20kHz, ±1dB
Input Impedance
6Ω
Maximum Input Level
4dBu
Others
Battery
Li-Polymer 1800mAh 3.7V
Working Time
Phantom power on: 5 hours
Phantom power off: 7 hours
Charging
USB-C 5V2A
Phantom Power
48V
Net Weight
605g
Size
250 *170 * 60mm
Working Temperature
0℃ ~ 50℃
Storage Temperature
-20℃ ~ 60℃
-
For Phones, Tablets, Computers, Condenser Mics, Dynamic Mics and Speakers
